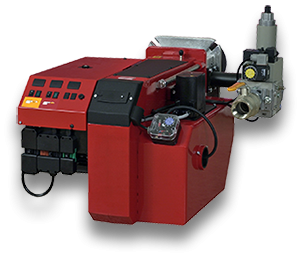

Bentone BG650-2 Gas Burner

Name: Bentone BG650-2 Gas Burner
Brand: PRATHAM ENERGY SYSTEMS PRIVATE LIMITED
Price: 375000 INR
Availability: InStock

Price 375000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bentone BG650-2 Gas Burner Specification

Condition
New

Type
Industrial Gas Burner

Usage
Industrial Heating Applications

Structure
Modular

Product Type
Bentone Burner

Pressure
0.7 - 3 bar

Style
Automatic

Color
Red

Material
Mild Steel

Dimensions
Approx. 800 x 480 x 650 mm

Flame Safeguard
Fitted

Model
BG650-2

Combustion Head Adjustment
Yes

Operating Temperature
-10C to +60C

Start/Stop Cycle
Automatic

Weight
Approx. 70 kg

Fuel Type
Natural Gas / LPG

Ignition System
Electronic

Voltage
230V / 50Hz

Burner Mounting
Flange

Sound Level
Less than 80 dB

Motor Power
Up to 1.5kW

Control Box
Integrated

Output Capacity
250-2000 kW

Application
Boilers, Furnaces, Ovens, Dryers

Bentone BG650-2 Gas Burner Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
Days

Main Domestic Market
All India

About Bentone BG650-2 Gas Burner

Bentone BG650-2

Backed by a team of adroit professionals, we are engrossed in supplying the best in class Bentone BG650-2 that is popularly known among our customers owing to its superior design and performance. The machine is equipped with precision machine components and tools. Due to its high build quality and reliable performance, we are seeing a huge demand for the machine in the marketplace. It does not degrade in quality due to heat, chemical attacks, and other detriments, therefore, this Bentone BG650-2 is sure to last for an extended period of time.

200-1125 kW

Available in versions up to 1,125 kW. 2-stage or modulating.

When changing from one type of gas to another only a few components need replacing. When Biogas is used, Bentone shall always be contacted.

Mounted on guide bars. Slow opening solenoid valve. Gas connection left or right. Recommended for over- and underpressure boilers. Designed for easy maintenance. Energy saving.

Versatile Industrial Gas Burner

Suitable for a wide array of industrial applications, the Bentone BG650-2 Gas Burner is engineered for use in boilers, ovens, furnaces, and dryers. Its compatibility with both natural gas and LPG lends flexibility and reliability, making it ideal for varied operational needs. The modular design and mild steel construction guarantee durability and ease of installation when you need it most.

Efficient and Safe Operation

With electronic ignition and an integrated control box, the BG650-2 offers centralized operation and enhanced safety. The fitted flame safeguard provides additional security, while the automatic start/stop cycle streamlines process management. Low sound level and adjustable combustion head further ensure quiet, efficient, and customizable performance for any industrial heating application.

FAQ's of Bentone BG650-2 Gas Burner:

Q: How does the combustion head adjustment benefit users of the BG650-2 burner?

A: The adjustable combustion head allows precise tuning for optimal flame stability and combustion efficiency, enabling users to adapt the burner to various heating requirements and fuel types for maximum operational flexibility.

Q: What heating applications is the Bentone BG650-2 Gas Burner suited for?

A: The BG650-2 is designed for industrial use in boilers, furnaces, ovens, and dryers. Its robust construction and versatile fuel compatibility make it ideal for a broad spectrum of heating demands within industrial processes.

Q: When should the BG650-2 Gas Burner be maintained for optimal performance?

A: Routine maintenance should be performed according to the manufacturer's guidelines, typically during scheduled downtime or annually, to ensure all components-including the motor, ignition system, and safety controls-remain in peak operating condition.

Q: Where can the BG650-2 Gas Burner be installed?

A: This burner is engineered for installation in industrial facilities that require reliable heating, commonly mounted with a flange to compatible boilers, furnaces, ovens, or dryers. Its design accommodates various industrial environments across India.

Q: What is the process for starting and stopping the burner?

A: The BG650-2 utilizes an automatic start/stop cycle, managed via its integrated control box and electronic ignition system. This allows for simple, safe, and reliable burner operation without manual intervention.

Q: How does the flame safeguard enhance operational safety?

A: The fitted flame safeguard monitors burner operation, automatically interrupting the fuel supply in the absence of a safe flame. This feature minimizes safety risks and protects against uncontrolled combustion events.

Q: What are the benefits of using a BG650-2 Gas Burner in industrial settings?

A: The burner offers dependable energy output, flexible fuel compatibility, automatic controls, and robust safety features. Its modular design, combined with quiet operation and ease of installation, delivers efficiency and longevity in demanding industrial environments.
