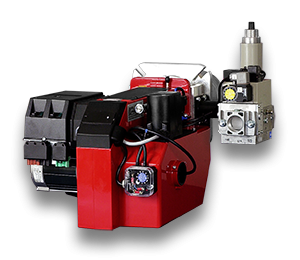

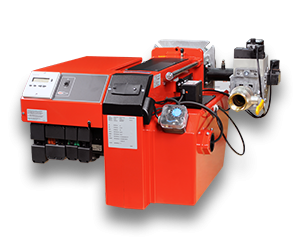

Bentone Gas Burner

Name: Bentone Gas Burner
Brand: PRATHAM ENERGY SYSTEMS PRIVATE LIMITED
Price: 331385 INR
Availability: InStock

Price 331385 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bentone Gas Burner Specification

Condition
New

Type
Gas Burner

Usage
Industrial heating, boilers, ovens, furnaces

Product Type
Bentone BG650M

Structure
Monobloc single-stage or two-stage

Pressure
Low and high pressure, adjustable according to application

Color
Red

Style
Modular, Compact

Material
Mild Steel

Ignition System
Automatic electronic ignition

Noise Level
Low noise operation

Air-Fuel Ratio Adjustment
Manual or servo-controlled

Fuel Consumption
Model-specific, optimized for efficiency

Compatible Gases
Natural Gas, LPG, Biogas

Control System
Integrated controls with safety devices

Compliance
CE approved, meets International standards

Power Range
15 kW to 3200 kW, model dependent

Application
Suitable for hot water boilers, steam boilers, and process heating units

Mounting
Flange mounting to burner head/boiler

Bentone Gas Burner Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
Days

Main Domestic Market
All India

About Bentone Gas Burner

Modulation burner available in 200-1125 kW

Modulation burner available in versions up to 1125 kW. Can be equipped with traditional control system or highly sophisticated burner management system from Siemens. The Siemens LMV control system gives you:

User friendly display control
Electronic ratio-control between air and fuel
Build-in leakage control (VPS)
Communication to main control unit (superior system) via modbus

BG 650M are suitable for traditional boilers, steam boilers, furnaces and all other areas of heating applications. Can be used in both over- and under -pressure boilers. Designed for easy maintenance.

Our industrial gas burner can be used for LPG, Natural gas and Biogas.

Capacity	1125 kW
Model Name/Number	BG650M
Brand	Bentone
Type of Industrial Burners	Gas Industrial Burners
Usage/Application	Industrial
Max Inlet Pressure	360 mbar
Control Unit	Siemens LMV 2/3
Motor Frequency	50 Hz
Motor Power	750 W
Motor Voltage	400 V
Flame Monitoring	Ionisation
Volume	0,68 m3c
Gross Weight	82 Kgc

Advanced Ignition and Safety Features

The automatic electronic ignition system enhances the reliability of Bentone gas burners, eliminating manual intervention while ensuring immediate and stable flame initiation. Integrated controls with safety devices continuously monitor burner performance and cease operation in case of irregularities, safeguarding your workforce and equipment during industrial operations.

Versatile Gas Compatibility and Power Range

Adaptable for natural gas, LPG, and biogas, the Bentone burners offer a model-dependent power range from 15 kW to 3200 kW. This versatility allows suitability across a spectrum of industrial processes, whether for low or high-pressure requirements, supporting various boiler and process heating setups.

Optimized Efficiency and Low Noise Operation

With carefully engineered fuel consumption and precise air-fuel ratio adjustment-manual or servo-controlled-these burners maximize efficiency for reduced operational costs. The design emphasizes low-noise performance, creating a more comfortable, safer, and compliant industrial environment.

FAQ's of Bentone Gas Burner:

Q: How does the automatic electronic ignition system work on Bentone Gas Burners?

A: The automatic electronic ignition system uses electronic components to ignite the burner reliably without manual intervention. Once the system is activated, it generates a spark to initiate combustion, ensuring quick, safe, and consistent burner starts.

Q: What types of gases are compatible with Bentone Gas Burners?

A: Bentone Gas Burners are compatible with natural gas, LPG, and biogas, allowing flexibility for different fuel sources according to industrial requirements and availability.

Q: When should I adjust the air-fuel ratio, and how is it controlled?

A: Adjusting the air-fuel ratio is essential when changing fuel types or optimizing burner performance for efficiency and emissions. This can be done manually or using a servo-controlled system, depending on the burner model, to achieve precise combustion control.

Q: Where are Bentone Gas Burners typically installed and used?

A: These burners are flange-mounted to burner heads or boiler fronts and are widely used in industrial heating, including hot water boilers, steam boilers, ovens, furnaces, and other process heating units.

Q: What are the benefits of using Bentone Gas Burners in industrial applications?

A: Benefits include optimized fuel efficiency, reliable automatic ignition, versatile fuel compatibility, compliance with international CE standards, and low noise operation. These features together promote safety, reduce operational costs, and ensure robust industrial performance.

Q: What safety measures are integrated into the Bentone Gas Burner control system?

A: The integrated control system continuously monitors operational status and features automatic shut-off and safety devices that activate in case of faults, preventing unsafe conditions and protecting both personnel and equipment.
